Smartphone Zone 1/21

IS530.1

The high-performance intrinsically safe smartphone can be used in a variety of ways thanks to the ISM interface. Additional modules such as the remote speaker mic, PTT headsets or the IS-TH1xx.1 professional barcode scanner turn the IS530.1 into a high-performance multifunctional device. The smartphone is Android Enterprise Recommended, zero-touch capable and MDM compatible.


Advantages

  • Universal, 13-pin ISM (multifunctional) interface for connecting additional devices for a wide range of applications
  • Android Enterprise Recommended
  • Android™ 13
  • Zero-touch capable
  • MDM compatible

Technical features

Operating systemAndroid™ 13
ProcessorQualcomm® Snapdragon SDM660 Octa Core
Memory4 GB RAM
64 GB internal memory
microSD to 128 GB
Frequencies2G GSM 850/900/1800/1900 MHz
3G WCDMA B1/2/4/5/8
4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66
4G LTE-TDD: B38/B39/B40/B41
4G LTE-TD: B34/B38
DimensionsSize: 155,3 x 76,7 x 25 mm
Weight: 325,0 g
Display4,5" (11,43 cm) Corning® Gorilla® Glass V3
usable with gloves
Battery3600 mAh, 3,8 V
replaceable
Camera

Further features

Multifunctional ISM interface
Multifunctional, lateral ISM interface for a quick and safe connection of additional devices
SOS-Taste
SOS key for loneworker protection
LWP ready (third party application required, based on country specific regulations)
PTT-Taste (Push to Talk)
Push-To-Talk key
PTT ready (third party application required, based on country specific approvals)
Verstärkter Lautsprecher
Amplified loudspeaker
Sensors
Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

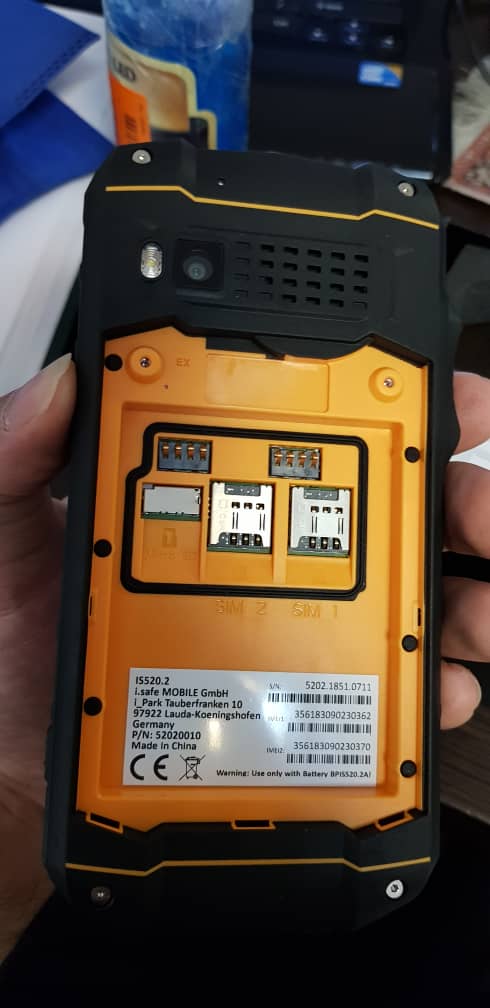

SIM cart
Dual-Micro-SIM
Ladeoptionen (Desktopcharger, Magnetic)
USB-C, Magnetic charger port, Desktop Charger, Multi Charger
Download datatsheet | pdf ▪ 2 MB

Approvals

ATEX (Europe)
ATEX (Europe)
approved
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP6X
IECEx (International)
IECEx (International)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
NEC500 (North America)
NEC500 (North America)
approved
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III Div. 1
EAC (Russia)
EAC (Russia)
approved
1Ex ib IIC T4 Gb X
Ex ib IIIC T135°C Db X IP64
KCs (South Korea)
KCs (South Korea)
approved
Ex ib IIC T4
Ex ib IIIC T135°C
INMETRO (Brazil)
INMETRO (Brazil)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
PCEC (China)
PCEC (China)
approved
Ex ib IIC T4 Gb
Ex ibD 21 T135°C
JNIOSH (Japan)
JNIOSH (Japan)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
IA (Southern Africa)
IA (Southern Africa)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
ATEX (Europe)
ATEX (Europe)
approved
II 2G Ex ib IIC T4 Gb
NEC500 (North America)
NEC500 (North America)
approved
Class I Div. 1 Groups A, B, C, D, T4
IECEx (International)
IECEx (International)
approved
Ex ib IIC T4 Gb

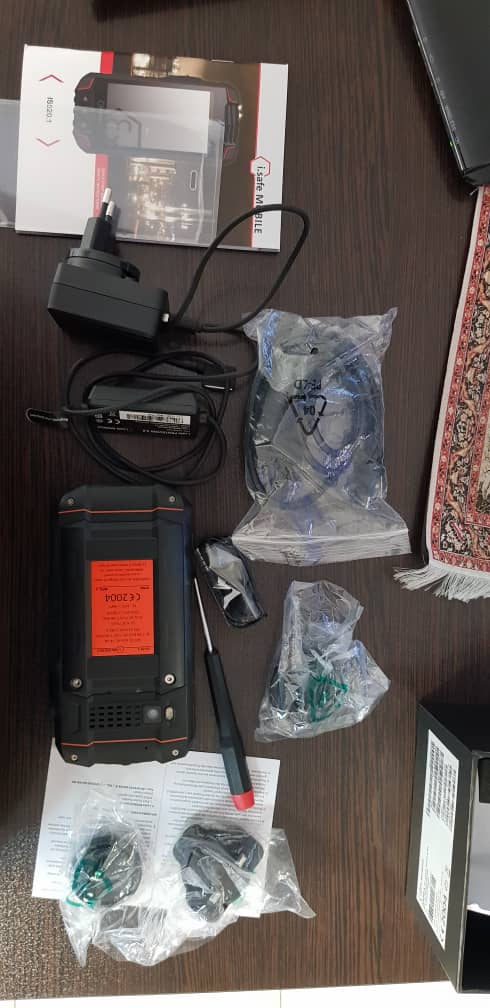

Included
  • Smartphone
  • Battery
  • i.safe PROTECTOR 2.0
  • i.safe PROTECTOR 3.0
  • Power Adapter universal
  • Screwdriver
  • Display Protection Foil
  • Display cleaning cloth
  • Safety Instructions
  • Quick Start Manual
Made In Germany
